5th Generation Stealth Fighter YF-23A Could Have Been a Contender: If an airplane competition were like two quarterbacks who had similar size, great arms, strength, accuracy, and mobility, who would you take? This is what the U.S. Air Force was up against when picking between the YF-23A and the YF-22A – the airplane that would become the F-22 Raptor.
Both airplanes were part of the Advanced Tactical Fighter competition to improve upon the F-15 and F-16. It was the late 1980s and the Air Force was concerned about the Soviet Union’s 4th generation Su-27 and the MiG-29. They wanted a 5th Generation, stealth warplane that could outfight the Russians for air superiority and sneak by their surface-to-air missiles. The Air Force was looking for supercruise capability (supersonic flight without employing afterburner) and agile dogfighting ability.
Let’s Get Ready to Rumble
The battle lines were drawn, and both demonstrators had admirable characteristics. First up was the YF-23A. This was designed by Northrop-McDonnell Douglas. There were two prototypes with experimental turbofan engines. One was called the Black Widow II. This had Pratt and Whitney YF199 engines. The other model was dubbed the Gray Ghost with General Electric YF120 engines. These put out a top speed of 1,451 miles per hour.
YF-23A Had a Different Wing Shape and Plenty of Armaments
The YF-23A had diamond-shaped wings to reduce drag, giving a very unique look for sure. Northrop-McDonnell Douglas claimed their entrants had 100 percent radar evasion characteristics due to their low profile.
The YF-23A was to be armed with a 20mm M61 Vulcan Gatling gun. Internal weapons bays could carry four AIM-7 Sparrow or AIM-120 AMRAAM medium-range air-to-air missiles, plus two AIM-9 Sidewinder short-range missiles.
YF-22A Was a Little Faster
The next competitor was the YF-22A stealth fighter, again, what we know today as the F-22 Raptor. This was made by the primary contractor, Lockheed Martin with Boeing, and General Dynamics playing supporting roles. The YF-22A achieved supercruise speeds of MACH 1.58 and the top velocity was 1,599 miles per hour, slightly faster than the YF-23A.
But the YF-23A had a longer range and a higher ceiling – 2,796 miles maximum range and a ceiling of 65,000 feet. Meanwhile, the YF-22A had a range of 2,000 miles and a ceiling of 50,000 feet.
The YF-22A, when it later became the F-22, would ultimately be armed with six AIM-120C and two AIM-9 missiles. For its bombing role, the F-22 can internally carry two 1,000 pound-class Joint Direct Attack Munitions (JDAM), two AIM-120C, and two AIM-9 missiles.
One “Quarterback” Outlasted the Other
So, you see what I mean – both “quarterbacks” were evenly matched. It was going to boil down to performance in the air. The YF-22A was seen by the Air Force as more agile and better in a dog fight. The in-flight trials were where the YF-22A showed its stuff. The YF-22A launched missiles and put the Lockheed model through moves that placed 9Gs on the airframe. For some reason, the YF-23A did not display the same maneuvers. Northrop likely wishes it could have had a do-over. The YF-22A was just better at showmanship and it won the bid – later becoming the F-22.
YF-23. Image Credit: Screenshot/Artist Rendering of Possible Final Design.
To prevent injury to ground personnel while under the aircraft, the ram air scoop was highlighted with a set of red and white triangles for visibility. The unintended coincidence looked like a Black Widow hourglass while the aircraft was in flight.

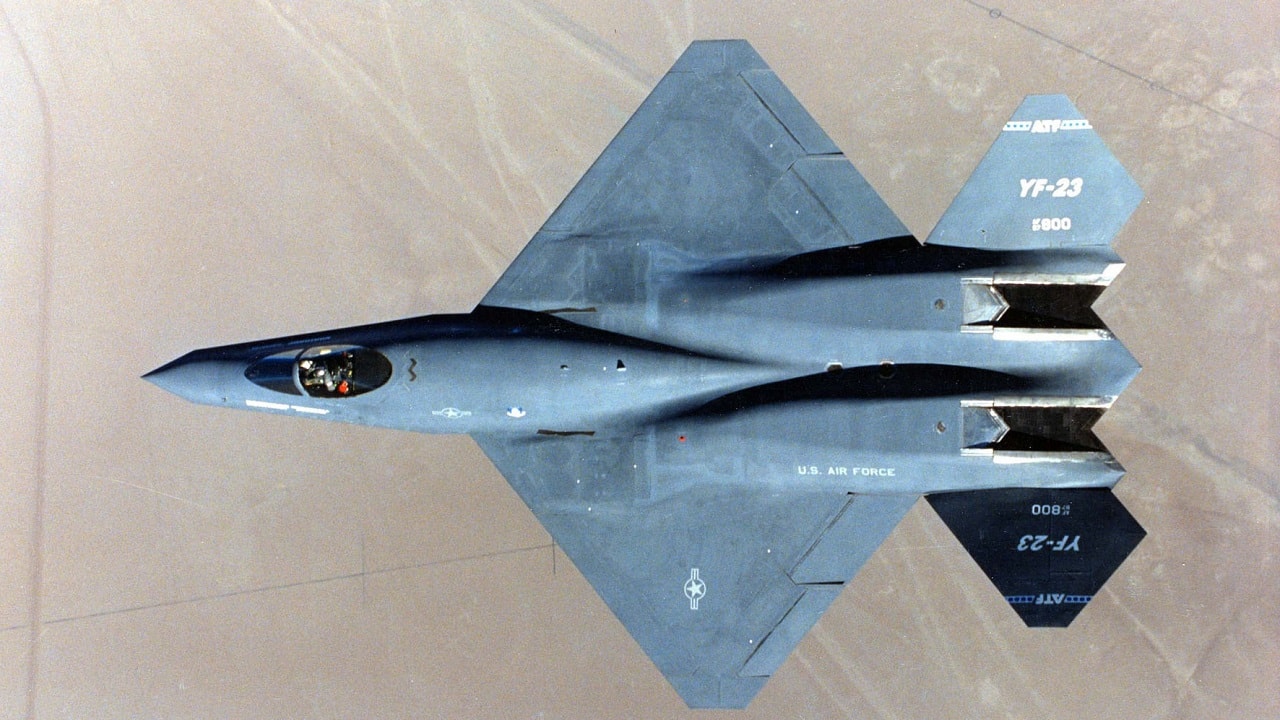

YF-23. Image Credit: Creative Commons.
YF-23 stealth fighter, which could inspire the design of the NGAD.
