X-29: Why Does This Plane Look Backwards?

X-29

The Grumman (now Northrup Grumman, most famous for being the manufacturer of the F-14 Tomcat) X-29 is one of the more obscure experimental aircraft in aviation history that failed to make it past the testing phase, ergo nowhere near famous as other weapons ending in “29,” such as the B-29 Superfortress or Dirty Harry’s Smith & Wesson Model 29 .44 Magnum. But that doesn’t make it any less exciting or worthy of an article.

(Subscribe to Our YouTube Channel Here. 19FortyFive publishes original videos every day.)

Let’s take a closer look at the history of this short-lived bird:

X-29: One Short of a Dirty Thirty

The X-29 made her maiden flight of December 14, 1984, piloted by Grumman Chief Test Pilot Chuck Sewell out of Edward AFB, California. It was an experimental aircraft that tested a forward-swept wing, canard control surfaces, and other novel aircraft technologies.

Two were built, which were flown by NASA and the U.S. Air Force, and received additional funding from DARPA (the Defense Advanced Research Projects Agency).

The X-29 was the third forward-swept wing jet-powered aircraft design to fly; the other two were the Luftwaffe’s Junkers Ju 287 jet bomber (1944) and the HFB-320 Hansa Jet aka the “German LearJet” (1964).

On December 13, 1985, it became the first forward-swept wing aircraft to fly at supersonic speed in level flight. The Ju287 encountered problems with the metal wings bending dangerously at higher speeds. However, as stronger composite materials became available in the 1970s, wing structures could be both lightweight and very rigid, and the X-29 was built to “Carpe Diem” on these technological advancements.

The aerodynamic instability of the X-29’s airframe required the use of computerized fly-by-wire control. The silver lining behind the proverbial “cloud” of this instability was wide predictions providing extreme maneuverability. However, as noted by the official NASA Fact Sheet on the X-29, “The X-29 did not demonstrate the overall reduction in aerodynamic drag that earlier studies had suggested. The X-29 program did demonstrate several new technologies as well as new uses of proven technologies including aeroelastic tailoring to control structural divergence and use of a relatively large, close-coupled canard for longitudinal control. In addition, the program validated control of an aircraft with extreme instability while still providing good handling qualities; use of three-surface longitudinal control; use of a double-hinged trailing-edge flaperon at supersonic speeds; control effectiveness at high angles of attack; vortex control; and military utility of the overall design.”

“Trust No One *Under* 30?”

The two X-29 aircraft flew a total of 242 times from 1984 to 1991. The first of the two specimens, 82-003, was put on post-retirement display at the Research and Development Gallery of the National Museum of the United States Air Force on Wright-Patterson AFB near Dayton, Ohio in late 1994.

X-29

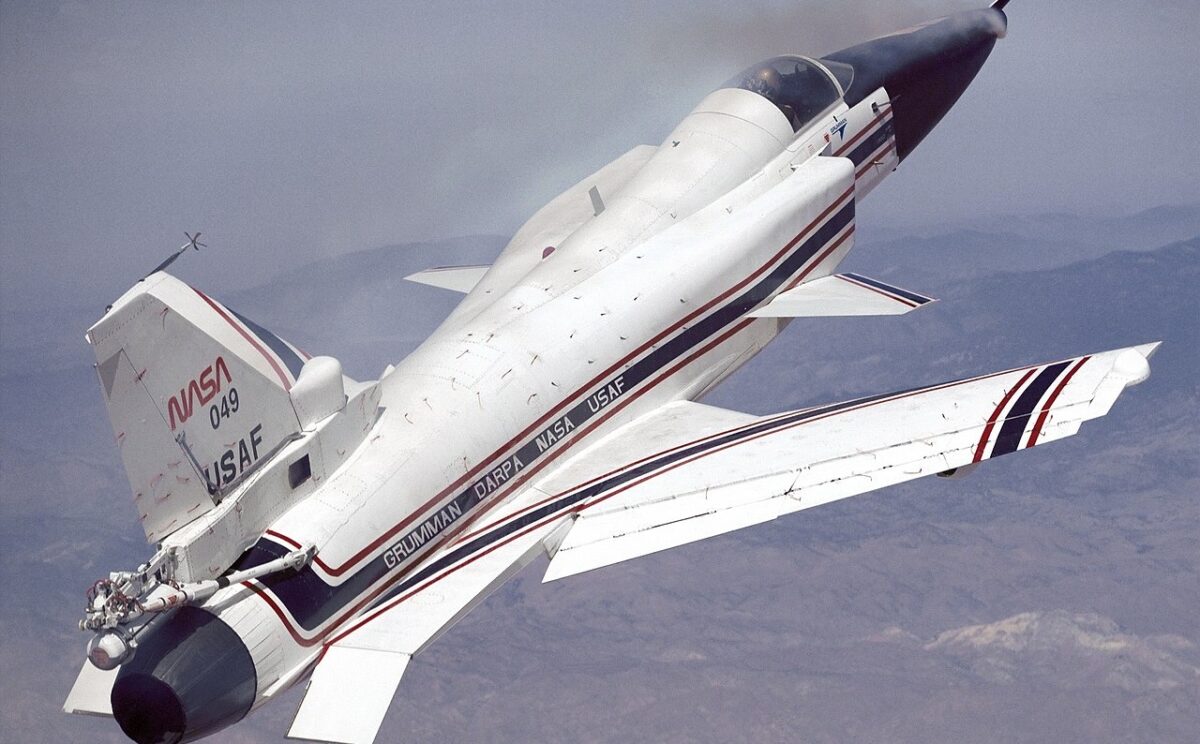

This photo shows the X-29 during a 1991 research flight. Smoke generators in the nose of the aircraft were used to help researchers see the behavior of the air flowing over the aircraft. The smoke here is demonstrating forebody vortex flow. This mission was flown September 10, 1991, by NASA research pilot Rogers Smith.

X-29

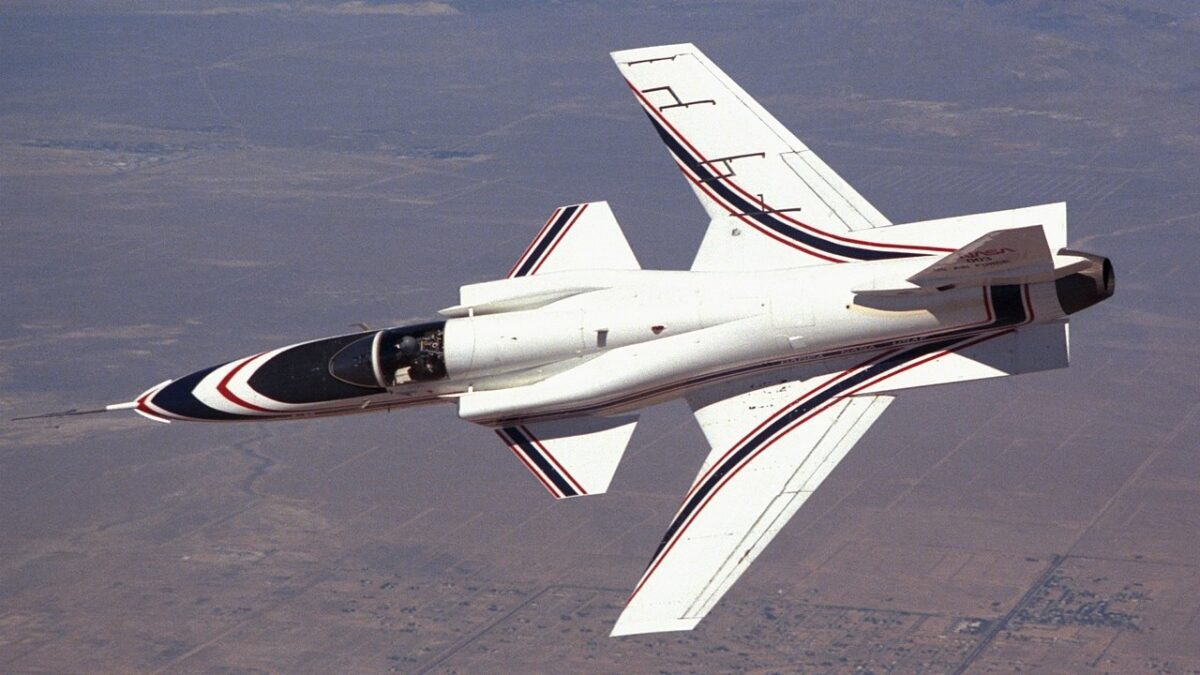

The No. 1 X-29 advanced technology demonstrator aircraft banks over desert terrain near NASA’s Ames-Dryden Flight Research Facility (later redesignated the Dryden Flight Research Center), Edwards, California. It was flown in a joint NASA-Air Force-Defense Advanced Research Projects Agency program from December 1984 to 1988 investigating handling qualities, performance, and systems integration on the unique forward-swept-wing research aircraft. Phase 2 of the X-29 program involved aircraft No. 2 and studied the high-angle-of-attack characteristics and military utility of the X-29.

The other craft found its own retirement home at the Armstrong Flight Research Center on Edwards Air Force Base. And for the benefit of our readers who don’t have either the time and/or money and/or desire to make a trip to the West Coast or the Midwest anytime soon, you’re still in luck, as the Cradle of Aviation Museum in Garden City, New York has hosted a full-scale replica of the X-29 since 2011.

Specifications

Crew: 1

Capacity: 4,000 lb (1,814 kg) payload

Length: 53 ft 11.25 in (16.4402 m) including nose probe

48 ft 1 in (15 m) fuselage only

Wingspan: 27 ft 2.5 in (8.293 m)

Height: 14 ft 3.5 in (4.356 m)

Wing area: 188.84 sq ft (17.544 m2)

Empty weight: 13,800 lb (6,260 kg)

Max takeoff weight: 17,800 lb (8,074 kg)

Maximum speed: 956 kn (1,100 mph, 1,771 km/h) at 33,000 ft (10,058 m)

Maximum speed: Mach 1.6

Range: 350 nmi (400 mi, 650 km)

Service ceiling: 55,000 ft (17,000 m)
