Supercavitating Torpedoes: Russia and Iran Have Them (The U.S. Navy Doesn’t)

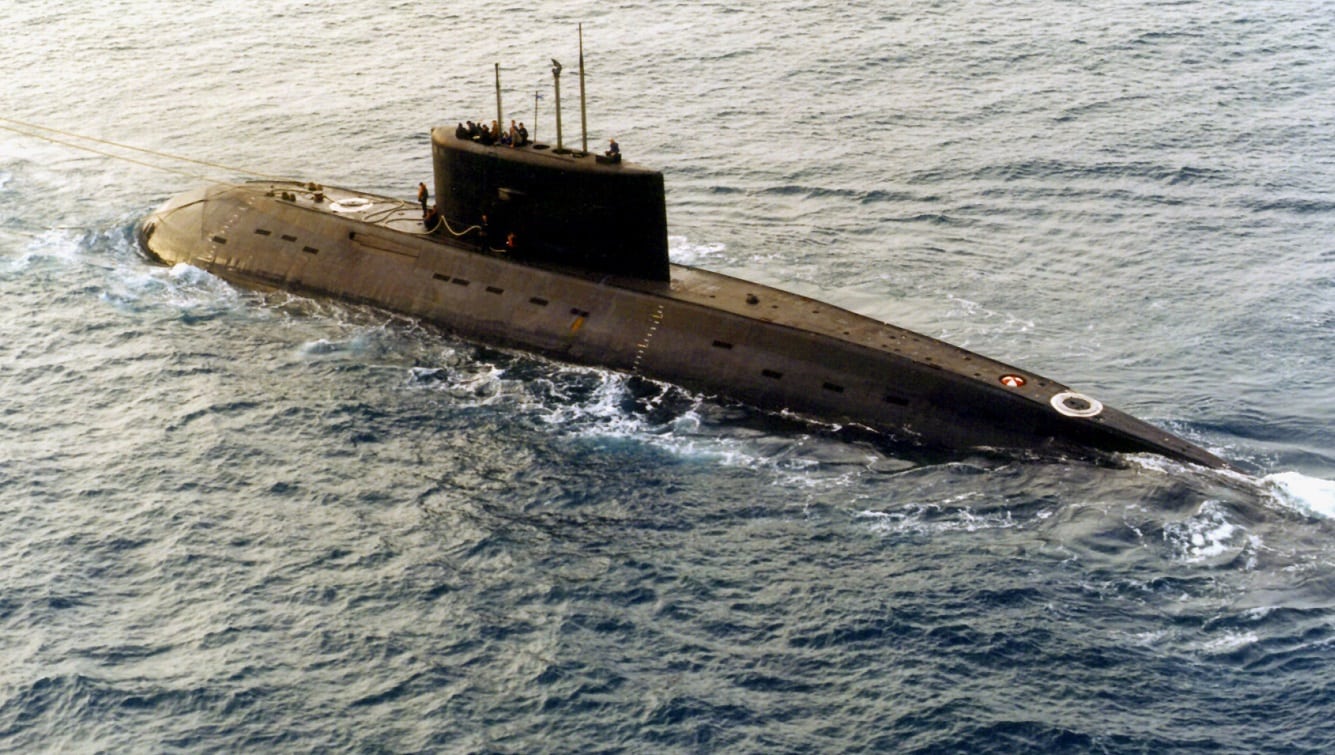

Diesel Submarine
A Russian-built, Kilo-class diesel submarine recently purchased by Iran, is towed by a support vessel in this photograph taken in the central Mediterranean Sea during the week of December 23. The submarine and the support ship arrived at Port Said, Egypt, on Tuesday and were expected to begin transiting the Suez Canal today, Jan. 2, 1996. Ships and aircraft from the U.S. NavyÕs Sixth Fleet are tracking the submarine, which has been making the transit on the surface. This is the third Kilo-class submarine the Iranians have purchased from Moscow. DoD photo

Two of America’s primary foes, Russia and Iran, possess a supercavitating torpedo. Germany and the U.S. round out the list as the only other countries known to operate these novel weapons.

As the name suggests, a supercavitating torpedo uses supercavitation to move through the water at higher velocities than conventional torpedoes. Supercavitation is the use of a cavitation bubble to reduce drag.

Supercavitating Torpedoes, Explained

The bubble forms at the nose of the object – in this case, a torpedo – and extends past the aft end of the object. It prevents contact between the sides of the object and the liquid medium through which it passes. The separation that the bubble creates between the object (torpedo) and the liquid (ocean water) significantly reduces skin friction drag, allowing the object to achieve higher speeds.

Supercavitating objects typically feature a distinctive nose, with a sharp-edged perimeter designed to produce the bubble. The nose is often articulated and shaped like a flat disk or cone. The body of the supercavitating object is typically slender – all the better to be enveloped in a cavitation bubble. If the bubble created is not long enough to encompass the entire object, high-pressure gas can be injected near the object’s nose to extend the bubble.

Rocket propulsion is often used to sustain the high speeds needed to achieve supercavitation. Various methods can be used to maneuver a supercavitating object, including: differential thrust from multiple nozzles; vectoring rocket thrust through a gimbaling single nozzle; a tilted object nose; gas injected asymmetrically near the object’s nose to distort the bubble’s geometry; and drag fins that can project through the bubble into the surrounding liquid.

Reverse-Engineered Supercavitation

The Soviets started experimenting with supercavitating torpedoes in the 1960s. Russia’s current flagship model is the VA-111 Shkval, which has been in service since 1977. The VA-111 is launched from a 533mm torpedo tube and relies on a solid-fuel rocket to achieve cavitation speeds.

A combined-cycle gas turbine in the nose creates the gas bubble. Once the VA-111 has achieved the requisite speed, an underwater ramjet, fueled by hydroreactive metals that use seawater, helps keep the torpedo humming at speeds of 230 miles per hour. Some reports suggest the VA-111 is even capable of reaching 290mph, and that the Russians may be working to develop a model capable of exceeding 350mph. The VA-111 uses four fins to change direction.

Russia jealously guards its supercavitating technology. In 2000, a U.S. citizen named Edmond Pope was convicted of espionage related to information he gathered about the VA-111. Pope, a former U.S. naval officer turned businessman, was said to be spying on behalf of the U.S. Defense Intelligence Agency. He was sentenced to 20 years, but after being held for 253 days, Pope was pardoned on humanitarian grounds by newly elected Russian President Vladimir Putin: The U.S. government claimed that Pope had a rare form of bone cancer. Pope has always maintained his innocence.

Iran operates a supercavitating torpedo, too, the Hoot (which is Persian for Whale). Most industry experts agree that Iran reverse-engineered the VA-111 to create the Hoot, which has been in service since 2006. Apparently, the torpedo can reach speeds of 220mph, but it only has a six-mile operational range. Iran claims to have successfully test-fired their supercavitating torpedo from a surface ship in the Strait of Hormuz.

Despite their advanced speeds, supercavitating torpedoes are limited in range to under 10 miles. Conventional torpedoes, like the American Mark-48, can travel 24 miles.
